S-Series
UNDERSTAND WHAT YOU’RE LOOKING AT WITH WASSP
The S-series offers one of the world's most cost-effective, professional survey and mapping multibeam sounder solutions with products that bridge the gap between single-beam and higher priced MBES systems.
Scanning at 120-degrees swath, port-to-starboard and using advanced signal processing, the S3 gives you a complete and accurate picture of seafloor bathymetry so you can really understand what you’re looking at.
Our S-series is purpose-built for surveying and mapping. You’ll find it’s ideal for:
• Detailed hydrographic surveys • General bathymetry survey to identify areas that need more inspection • Port and harbour management • Dredging • Offshore energy surveys • Navigation • Security • Wreck hunting • Search and rescue • Fish farm surveys • Infrastructure and environmental surveys
THE WASSP S3 SURVEY MULTIBEAM ECHOSOUNDER
- DRX-32
- 160 Tank mount Transducer 10m or 160E External mount Transducer 10m
- Power and interconnect cables. With Survey Interface License and BLUEBEAM installed
The WASSP S3i system also includes:
- V123 satellite compass w 15m cable
- WASSP IMU
- WASSP RS422-A Fast fit JB
The WASSP S3R Solution is a fully integrated kit which has all the core components required for professional Multibeam Survey operations, including a versatile complete sensor package with RTK GNSS and INS for enhanced and accurate position, heading and motion as well as an SVS for sound velocity.
The S3R turnkey package is designed to ensure functionality, ease of use and cost effectiveness, all the while achieving accuracies required by international survey standards such as IHO S-44 Standard 1A.
The S3R solution with the separate sensor kit makes it ideal for fixed installations on a survey vessel, Autonomous Surface Vessel (USV) or other platforms.

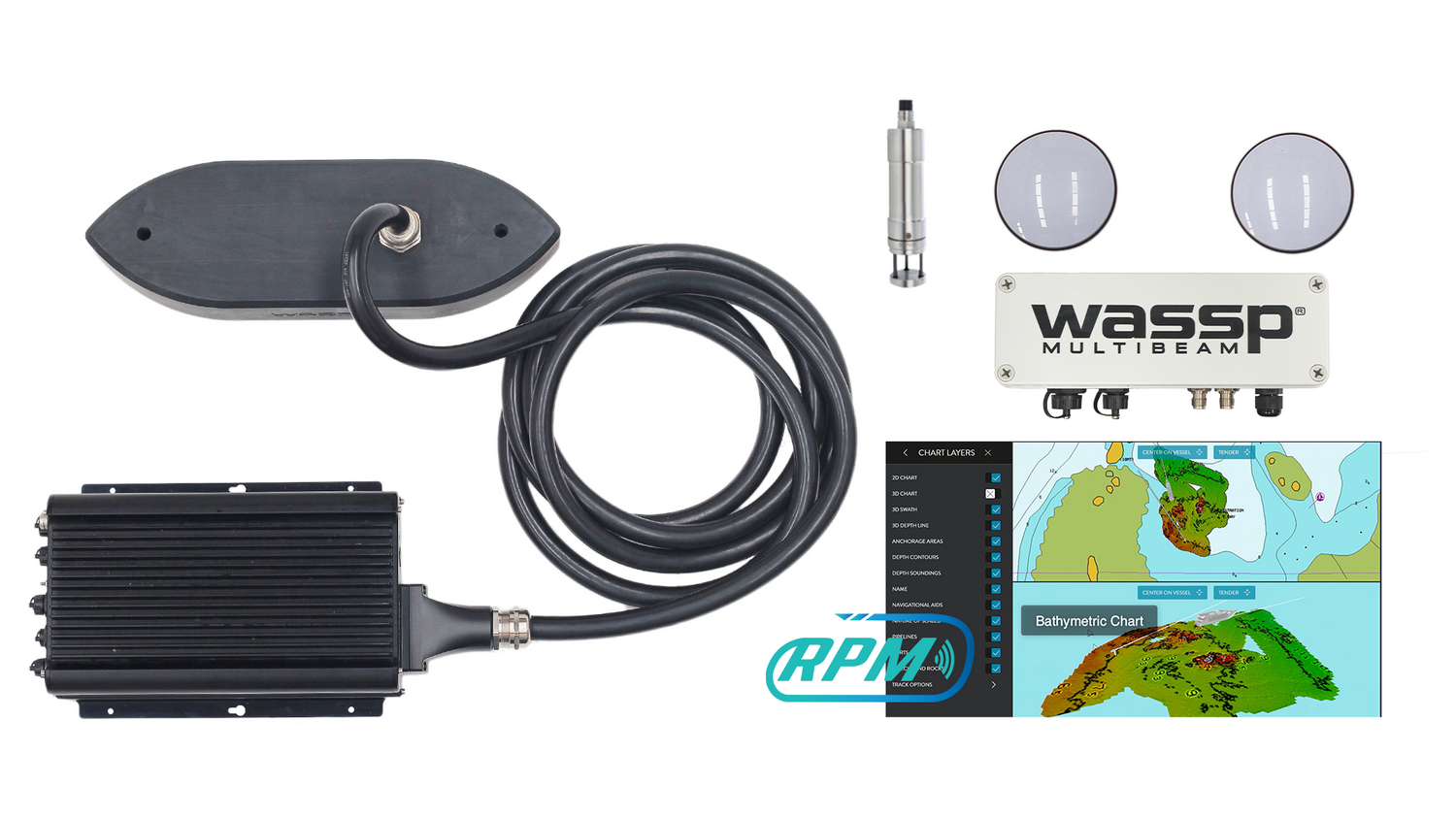

The WASSP S3R system includes:
- IP66 DRX-32
- 160E External mount Transducer 10m for IP66 endplate
- WASSP Sensor kit Ellipse Dual RTK INS (Heading, position, pitch, roll, heave
- Mini SVS
- CDX, RPM and Survey interface License. With RPM inside
- 12VDC to 24VDC 5 amp Galvanically isolated converter 12/24-5A

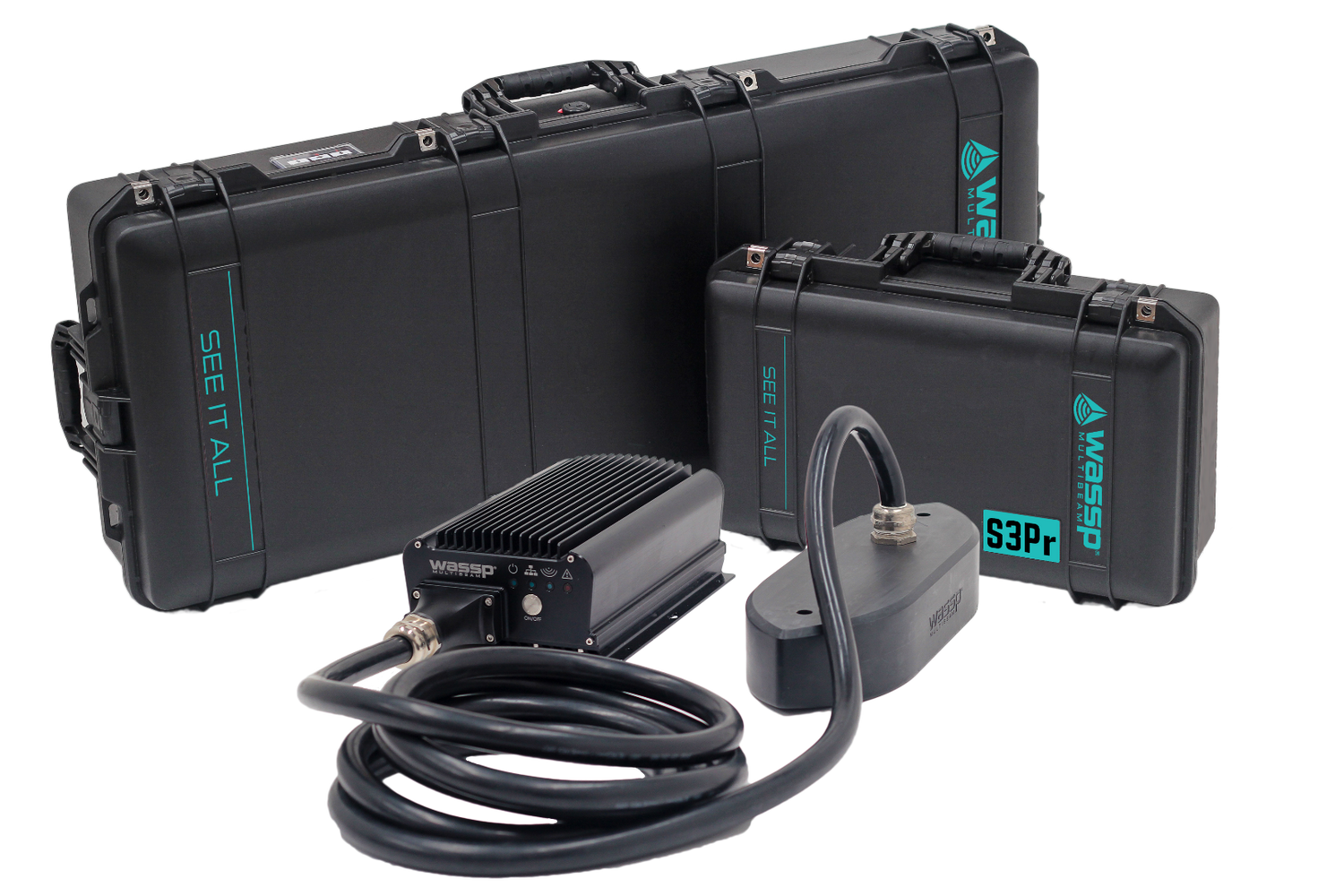

THE WASSP S3PR POLE KIT
The WASSP S3Pr pole mount kit takes portable surveying to a whole new level. The full turnkey package with all required sensors is combined within 2 rugged cases allowing for easy transportation, giving the power and accuracy you would expect from a complete portable professional survey system. The adjustable and removable 'over-the-side' pole mounting kit is flexible enough to offer a range of mounting options for virtually any small to medium sized boat, giving you the flexibility you need when performing on-site survey mapping operations.
The WASSP S3PR System with T Pole mount includes:
- IP66 DRX in travel case
- 160E External Mount Transducer 5m for IP66 endplate
- Transducer fitted with top plate mount for pole and in a travel case
- WASSP Sensor kit Ellipse Dual RTK INS (Heading, position, pitch, roll, heave
- Mini SVS
- CDX, RPM and Survey interface License. With RPM inside
- 12VDC to 24VDC 5 amp Galvanically isolated converter 12/24-5A
NZ Made
WASSP is designed, manufactured and tested in New Zealand to our globally recognised and high-quality marine standards.
Global Support
WASSP is distributed and supported in over 40 countries worldwide, ensuring dealer assistance is never far away.
80 Years Strong
WASSP is a part of the ENL group, one of New Zealand's longest standing Marine Companies, supporting customers since 1945.
